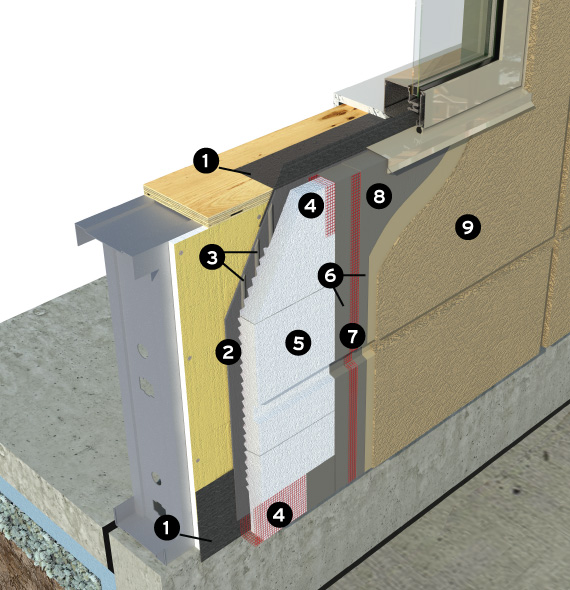

The ADEX-RS system is a water-managed exterior insulation and finish system that has been favourably evaluated by CCMC (12913-R) including use over wood substrates. The system incorporates a secondary weather resistant barrier (WRB), a vertical drainage plane, and a Geometrically Designe EPS board with 10mm grooves.
The ADEX-RS system, or its major components meet the following non-combustibility standards:
- CAN/ULC-S134: Fire Test of Exterior Wall Assemblies
- CAN/ULC S114: Method of Test for Determination of Non-Combustibility in Building Materials
- CAN/ULC-S101: Fire Endurance Tests of Building Construction and Materials.
The ADEX-RS system is in full compliance with CAN/ULC-S716.1 “Exterior Insulation and Finish Systems (EIFS) – Materials and Systems”.
The ADEX-RS system replaces the ADEXRES-RS and ADEXICI-RS systems.

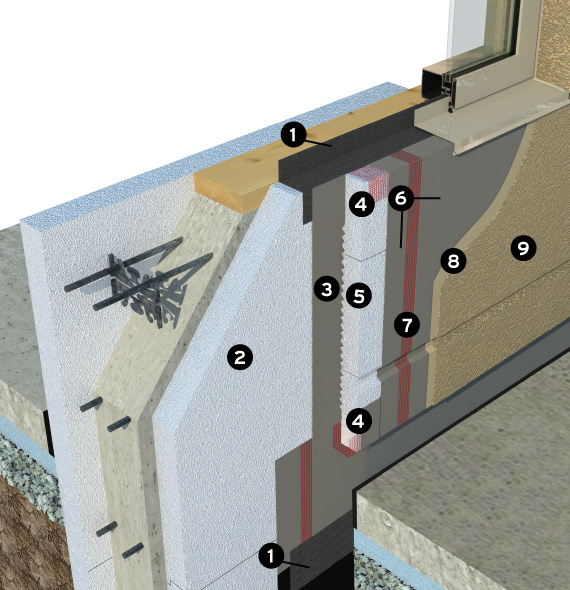

The ADEX-ICF system is a water-managed exterior insulation and finish system applied over an ICF construction without the use of mechanical fasteners. This system includes a second layer of eps, a secondary weather resistant barrier and a vertical drainage plane. The incorporation of EIFS TAPE membranes allows the system to be easily connected to other components within the assembly.
The ADEX-ICF system replaces the ADEXICI-ICF and ADEXRES-ICF systems.
